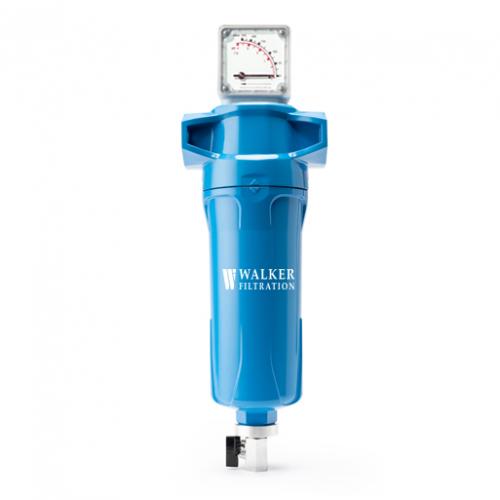

Alpha Vacuum Pump Exhaust Filters
Walker Filtration’s Alpha Simplex and Duplex Vacuum Pump Exhaust Filter is designed to remove oil mist from lubricated vacuum pumps while providing unrivaled filtration performance, reducing exhaust noise levels, and an oil free working environment.
With exceptional results in oil mist removal from vacuum pumps without internal oil separators, the Alpha elements guarantee exceptional dirt holding and drainage capabilities. Alpha Vacuum Pump Exhaust Filters minimizes pressure drop, optimizes filtration efficiencies to ensure damage prevention, and helps avoid costly downtime.
Designed with flow-optimization in mind, the Alpha Series of Compressed Air and Vacuum filters feature an all new advanced filter head and element design for improved air flow and performance – increasing the energy efficiency within your Compressed Air system.
Guaranteed exceptional dirt holding and drainage capabilities with minimal pressure drop.
- KEY FEATURES & BENEFITS
- ELEMENT TECHNICAL INFORMATION
-
KEY FEATURES & BENEFITS
The Alpha Vacuum Pump Exhaust Filters feature a comprehensive range with connection sizes ranging from 3/8” to 3”. High performing Simplex Filters deliver exceptional results in oil mist removal from vacuum pumps, while the two-stage Duplex Filter removes both oil mist and odor.
The Alpha elements utilize custom engineered media technology to provide market leading performance, significantly reducing pressure loss and energy consumption for low operational costs, and increase operating efficiencies.
-
ELEMENT TECHNICAL INFORMATION
GradeEF/DEFDACParticle removal0.1 micron0.1 micronMaximum oil carryover at 68°F (20°C)1 ppm 1 mg/m³0.003 ppm 0.003 mg/m³Pressure loss - clean & dry0.36 psi 25 psi0.44 psi 30 mbarPressure loss - saturated1 psi 70 mbar1.1 psi 75 mbarPressure loss - element change12 mths 8000 hrsat least every 6 monthsMaximum temperature248°F 120°C122°F * 50°C *Maximum working pressure300 psig 20.7 barg300 psig 20.7 bargElement end cap colorBlackBlack
*Recommended operating temperature 77°F (25°C)
-
The Ultimate in Filtration Performance
Preventing potentially harmful contaminants from being exhausted into the atmosphere.
Alpha custom engineered media technology delivers a step change in performance.
Two-stage filtration within one filter unit.
Manual drain fitted to all Vacuum Pump Exhaust Filters as standard.
Profiled bowl design and unique push fit filter elements ensure quick and reliable maintenance.
Internal and external electrophoretic painting followed by a tough exterior polyester powder coating.
