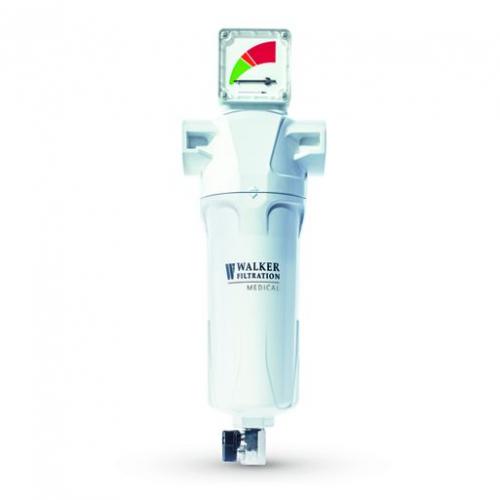

Alpha Medical Sterile Filters
When it comes to patient care, quality and reliability of compressed air is paramount. Walker Filtration’s range of New Alpha Medical Sterile Filters guarantees reliable and outstanding air purity that meets internationally certified medical performance levels.
100% integrity tested, New Alpha Medical Sterile elements are guaranteed for a minimum of 100 sterilizations at 248°F (120°C), ensuring your compressed air is free from live bacteria and other submicron particles.
Offered in a range of 19 models with connection sizes from 1/8” to 3” threaded NPT, Rp (BSP Parallel) and Rc (BSP Taper), this comprehensive range of Medical Sterile compressed air filters operate at a maximum temperature of 248°F (120°C), an improved maximum operating pressure of up to 300 psig (20.7 barg) and flow capacities up to 1500 SCFM (2550 Nm³/hr).
Third party tested and validated in accordance with NFPA 99, HTM 02-01, ISO 7396-1, and AS 2896.
- ELEMENT TECHNICAL INFORMATION
-
ELEMENT TECHNICAL INFORMATION
Grade
SRDOP efficiency*>99.9999%Particle removal0.01 micronPressure loss - clean & dry1.5 psi 100 mbarPressure loss - element changeAt least every 6 monthsMaximum autoclave temperature273°F 134°CMaximum operating temperature248°F 120°CRecommended operating temperature122°F 50°CMaximum working pressure300 psig 20.7 bargElement end cap materialStainless Steel*As specified in HT 02-01 medical gas pipeline systems
-
The Ultimate in Filtration Performance
Specially designed for autoclave sterilization compatibility.

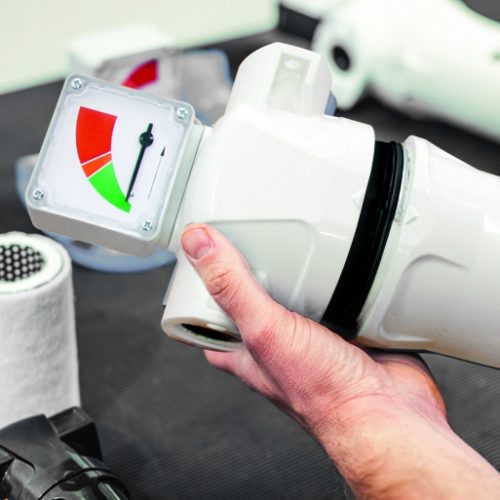

Profiled bowl design and unique push fit filter elements ensure quick and reliable maintenance.
Internal and external electrophoretic painting followed by a tough exterior polyester powder coating.
