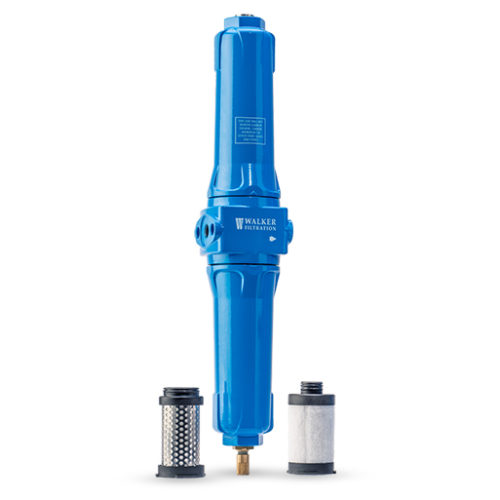

Alpha Compressed Air Duplex Filters
Alpha Compressed Air Duplex filters deliver an economical, space-saving filtration solution. With exceptionally improved performance, the intelligent design combines a two-stage filtration system in a single unit, ensuring twice the filtration capability.
Designed with flow-optimization in mind, the Alpha Compressed Air Duplex filters combine a 0.01 micron (DXA) and Activated Carbon (DAC) element that allows the filter housing to be installed in the same line space as a single stage filtration unit with twice the filtration capability.
Alpha Duplex Filters are ideal for use in point of use breathing air applications, as well as a pre-filter for critical need applications such as food, pharmaceutical, instrumentation, and breathing air environments.
The DXA grade element delivers significant energy savings with minimal differential pressure and exceptional oil aerosol removal and particle retention. The DAC element uses a finely divided Activated Carbon media to remove odors and tastes.
Market leading differential pressure of <1.8 psi across DXA grade
- KEY FEATURES & BENEFITS
- ELEMENT TECHNICAL INFORMATION
-
KEY FEATURES & BENEFITS
Available in a range of seven models with connection sizes ranging from ¼” – 1” NPT, Rp (BSP Parallel), and Rc (BSP Taper), the Alpha Duplex Filters space saving design utilize deep pleated media technology to deliver market leading performance. The 0.01 micron (DXA grade) element delivers exceptional results in oil aerosol removal and particle retention – with a significantly reduced differential pressure of <1.8 psi. The Activated Carbon (DAC) element utilizes a finely divided activated carbon media to remove odors and tastes.
-
ELEMENT TECHNICAL INFORMATION
Grade
DXA
DACParticle removal0.01 micron0.01 micronMaximum particle size class*11Maximum oil content*11Maximum oil carryover at 68°F (20°C)0.01 ppm 0.01 mg/m30.003 ppm 0.003 mg/m3Pressure loss: clean and dry1.2 psi 85 mbar1.1 psi 75 mbarPressure loss: saturated1.8 psi 125 mbarN/A N/APressure loss: element change12 months 8000 hoursat least every 6 monthsMaximum temperature122°F 50°C122°F** 50°C**Maximum working pressure232 psig 16 barg232 psig 16 bargElement end cap colorBlackBlack*to ISO 8573-1: 2010 **Recommended operating temperature 77°F (25°C)
-
The Ultimate in Filtration Performance
DXA and DAC elements for double the filtration performance.
Alpha deep pleated media technology delivers a step change in performance.
Lock indication arrows ensure effective sealing.
Profiled bowl design and unique push fit elements ensure quick and reliable maintenance.
