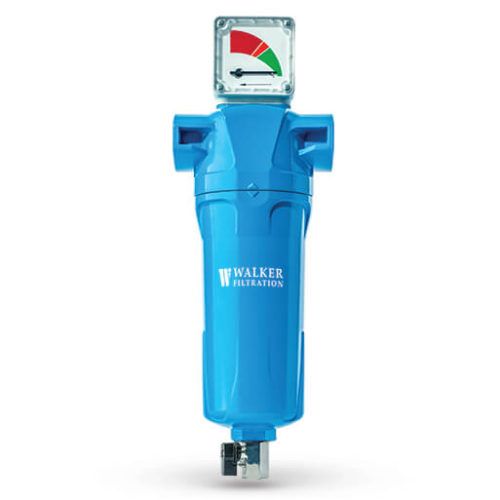

Alpha Particulate Filter
Advancements in new technology, improved low differential pressure, and a step change in performance ensures the Alpha Particulate Filters are the ideal solution for installation downstream of regenerative compressed air and gas dryers.
Walker Filtration’s Alpha Series Particulate Filters feature a redesigned housing and new element technology – making it one of the most energy efficient filter housings on the market today. Compressed Air Dust filters are designed for the removal of dry particulates, making them perfect for installation downstream of regenerative air and gas dryers.
Designed with flow-optimisation in mind, the Alpha Series incorporates an all new advanced filter head design, specifically developed to improve air flow and performance and increase the energy efficiency within your compressed air system. Providing identical performance to our Alpha Coalescing filters, this comprehensive range of particulate filters deliver exceptional results in particle retention of up to 99.999%.
The Alpha Series of compressed air Dust filters are tested and validated to ISO 12500-3: 2009 guaranteeing the highest levels of air quality.
Up to 99.999% particle retention when tested in accordance with ISO 12500-3.
- KEY FEATURES & BENEFITS
- Element Technical Information
-
KEY FEATURES & BENEFITS
With significantly reduced differential pressure, the Alpha element delivers optimal performance and low operational lifetime costs in reverse flow applications, reducing the need for system maintenance.

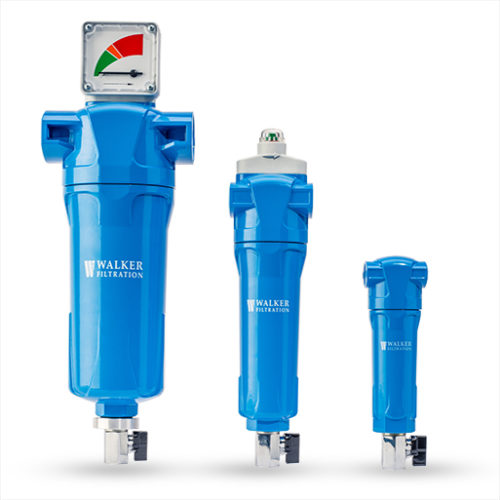

Offered in a range of 19 models with connection sizes from 1/8” to 3” Rp (BSP Parallel), Rc (BSP Taper) and NPT, the Alpha boasts a maximum operating temperature of 120˚C (248˚F), improved maximum operating pressure of up to 20.7 barg (300 psig) and flow capacities up to 1500 SCFM (2550 Nm³/hr).
With exceptional results in particle retention of up to 99.999%, and significantly reduced pressure loss, the Alpha Particulate Filter ensures total protection of manufacturing equipment from dust carryover.
Available in a range of connection sizes from 1/8” to 3”, the Alpha Particulate Filters have a maximum temperature of 120˚C (248˚F) and increased operating pressure of 20.7 barg (300 psig).
-
Element Technical Information
Element Technical Information
GradeRX25RX5RX1RXARACParticle removal25 micron5 micron1 micron0.01 micron0.01 micronMaximum particle size class*-4311Maximum oil carryover at 20°C (68°F)----0.003 mg/m³Pressure loss - clean & dry30 mbar 0.4 psi40 mbar 0.6 psi75 mbar 1.1 psi100 mbar 1.5 psi75 mbar 1.1 psiPressure loss - element change12 mnths 8000 hours12 mnths 8000 hrs12 mnths 8000 hrs12 mnths 8000 hrsat least every 6 monthsMaximum temperature120°C 248°F120°C 248°F120°C 248°F120°C 248°F50°C*** 122°F**Maximum working pressure20.7 barg 300 psig20.7 barg 300 psig20.7 barg 300 psig20.7 barg 300 psig20.7 barg 300 psigElement end cap colourBlackGreenRedBlueBlack* to ISO 8573-1:2010 ** Maximum recommended operating temperature 25°C (77°F)
-
The Ultimate in Filtration Performance

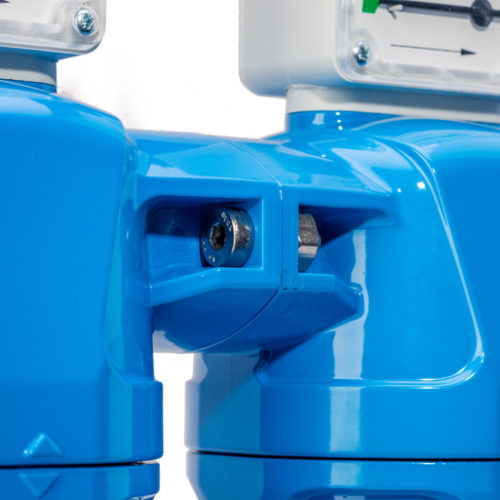

Low cost connecting kits and new filter head design enables easy close coupling assembly.
New Alpha deep pleated media technology delivers a step change in performance.
Lock indication arrows ensure effective sealing.
Custom engineered filtration media delivers optimum performance in line with air quality standard ISO 8573-1: 2010.
Internal and external electrophoretic paint finish followed by a tough exterior polyester powder coating.
Easy and accurate grade identification.
