Alpha Medical Sterile Filters
When it comes to patient care, and the use of compressed air and gas in environments where it is critical that micro-organisms do not come into contact with the end user or product, quality and reliability is paramount. Walker Filtration’s range of Alpha Medical Sterile Filters guarantee reliable and outstanding air purity that meets internationally certified medical performance levels, and is ideally suited for applications where the
100% integrity tested and designed to exceed the requirements of UK Health Technical Memorandum HTM02-01, Alpha Medical Sterile elements are guaranteed for up to 100 sterilisations at 120°C (248°F), ensuring your compressed air is free from live bacteria and other submicron particles.
Each element is supplied with an Air Sterilisation Certificate which guarantees the highest quality to our customers.
Offered in a range of 19 models with connection sizes from 1/8” to 3” threaded Rp (BSP Parallel), Rc (BSP Taper) and NPT, this comprehensive range of Medical Sterile compressed air filters operate at a maximum temperature of 120˚C (248˚F), and flow capacities up to 1500 SCFM (2550 Nm³/hr).
Third party tested and validated in accordance with HTM 02-01, NFPA 99, ISO 7396-1 and AS 2896.
- ELEMENT TECHNICAL INFORMATION
-
ELEMENT TECHNICAL INFORMATION
Grade
SRDOP efficiency*>99.9999%Particle removal0.01 micronPressure loss - clean & dry100 mbar 1.5 psiPressure loss - element changeAt least every 6 monthsMaximum autoclave temperature134°C 273°FMaximum operating temperature120°C 248°FRecommended operating temperature50°C 122°FMaximum working pressure20.7 barg 300 psigElement end cap materialStainless Steel* as specified in HTM 02-01 medical gas pipeline systems
-
The Ultimate in Filtration Performance
Specially designed for autoclave sterilisation compatibility.

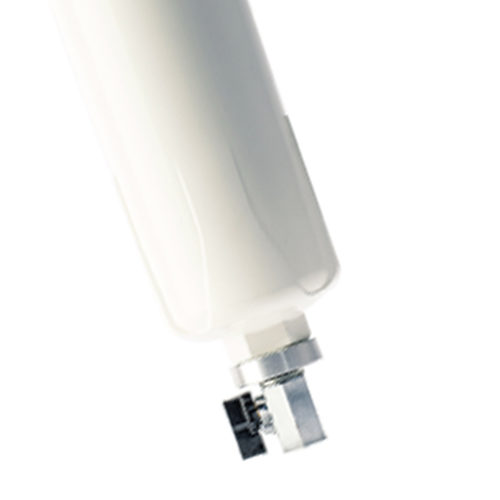

Profiled bowl design and unique push fit filter elements ensure quick and reliable maintenance.
Internal and external electrophoretic painting followed by a tough exterior polyester powder coating.
