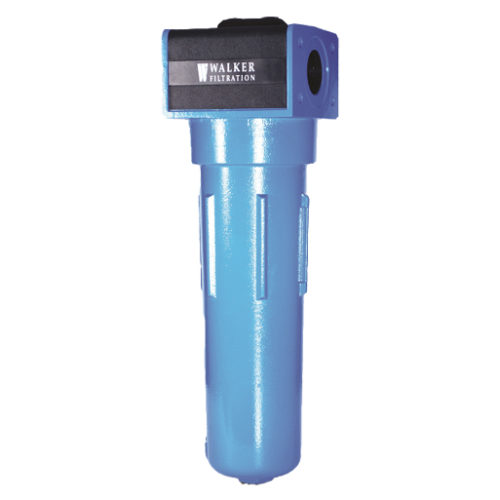

50 barg Alloy High Pressure Filters
A unique range of aluminum alloy high pressure filters with flow capacities of 160 Nm³/hr (94 SCFM) to 3200 Nm³/hr (1882 SCFM) and operating pressures of 50 barg (725 psig). Our 50 barg Alloy High Pressure range includes 9 models which are available in BSP and NPT threaded connections from ¼” to 2”.
The range utilises custom engineered filtration media to deliver exceptional filtration with minimal pressure drop, offering excellent value for money and low total cost of ownership.
All models feature the Walker Filtration push-fit filter element design with double ‘O’ ring seals for extra security against contamination by-pass. These models are available in all standard grades. Full corrosion protection is given by use of an electrophoretic coating both inside and out followed by a tough polyester powder coating on the outside.
Quality control of these CE marked products includes a hydrostatic test certificate and serial number for complete traceability.
Value without compromise.
- KEY FEATURES & BENEFITS
- ELEMENT TECHNICAL INFORMATION
-
KEY FEATURES & BENEFITS
Manufactured using high quality diecast aluminum, this unique high pressure range offers excellent value for money whilst still delivering exceptional filtration. Available in all standard filtration grades, including 25 micron, 5 micron, 1 micron and 0.01 micron, as well as Activated Carbon, for both coalescing and particulate filtration, silicone free options are also available upon enquiry.
-
ELEMENT TECHNICAL INFORMATION
Grade (Coalescing filter element)X25X5X1XAACParticle removal25 micron5 micron1 micron0.01 micron0.01 micronMaximum oil carryover at 20°C (68°F)10 mg/m³ 8.2 ppm5 mg/m³ 4.1 ppm0.1 mg/m³ 0.1 ppm0.01 mg/m³ 0.01 ppm0.003 mg/m³ 0.003 ppmMaximum temperature120°C 248°F120°C 248°F120°C 248°F120°C 248°F50°C* 122°F*Maximum working pressure20 barg 50 barg20 barg 50 barg20 barg 50 barg20 barg 50 barg20 barg 50 bargElement end cap colourBlackBlackBlackBlackBlack
* Recommended operating temperature 25°C (77°F)
-
