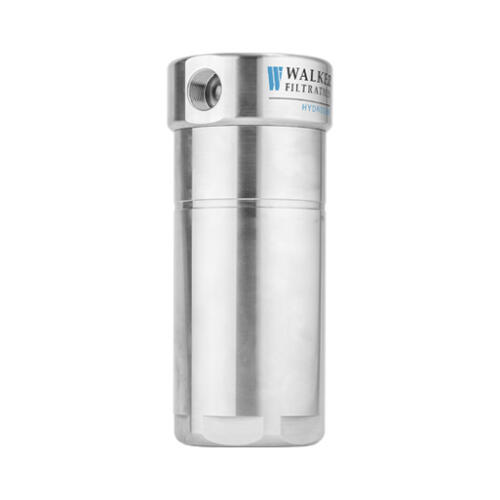

Hydrogen 550-1100 Bar Filters
Walker Filtration’s 550 and 1100 barg Hydrogen Filters provide a comprehensive range of high efficiency filters designed to meet the stringent requirements of Hydrogen applications.
Models | 550H03700 to 550H07500, 1100H03700 to 1100H07500,
Flow Rates 3050 Nm³/hr (250 Kg/hr) up to 6100 Nm³/hr (500 Kg/hr)
Available in two filtration grades of 1 micron and 5 microns, our hydrogen gas filters provide low pressure drop and offer optimal contamination protection against particle ingress for pressure system components.
Suitable for use with dry hydrogen, these filters are available in a range of flows and pressures to protect the various stages of the developing hydrogen economy, whatever your requirement, Walker Filtration can support you with your unique and custom hydrogen filtration solutions.
Our new filter range delivers protection for all components within systems against particulate across the broad range of Hydrogen applications.
- Medium pressure cone & thread fittings 3/8”–3/4”
- Particle Removal down to 1 Micron
- Up to 1100 bar maximum working pressure
- Safety 1st – PED 2014/68/EU Compliant for Group 1 Gases
- Improved flow characteristics
- Improved leak rate
- Third-party pressure tested & validated
- KEY FEATURES & BENEFITS
-
KEY FEATURES & BENEFITS
Advanced Filtration Technology Optimum design and high efficiency filtration media provides low pressure losses and increased energy savings in line with air quality standard ISO 8573-1: 2010.
O-ring Sealing Push fit element design and specialist hydrogen compatible o-ring seals eliminates the risk of contaminant bypass.

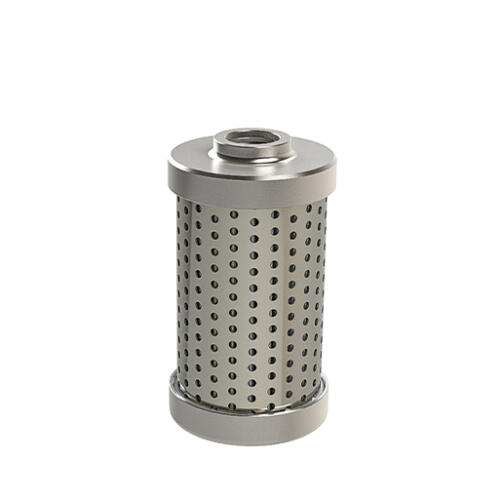

Stainless Steel Element End Caps On all element models.
Simplified Serviceability Hexagonal spanner locator coupled with the internal unique push fit element ensures a simple, quick and reliable servicing process.
Quality Guaranteed All Hydrogen Filters are manufactured in an ISO 9001 certified factory and are PED compliant. Each filter is hydrostatic tested prior to despatch to guarantee quality and performance.
Walker Filtration can provide reliable filtration solutions for Hydrogen generation systems, that are manufactured in accordance with ASTM G93 / G93M.
For over 35 years we have built a reputation of high quality, exceptionally engineered filtration and drying products. We never rest on our laurels. Continuing investment in technology and expertise means we stay at the leading edge of innovation.
We provide not only highly specified standard product ranges, but also customised solutions designed specifically for our customers needs. We anticipate customer demands, match technology with market developments and assure product performance to the highest exacting international standards.
We employ extensive use of the latest in computer aided engineering such as finite element analysis and computational fluid dynamics. The technical performance of our products is assured for all our customers via our own in-house extensive product testing facilities and procedures.
